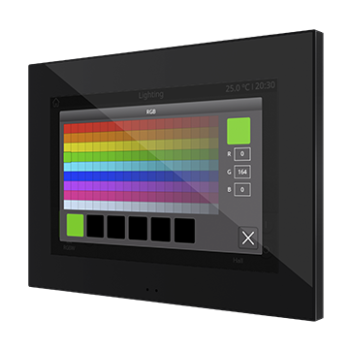

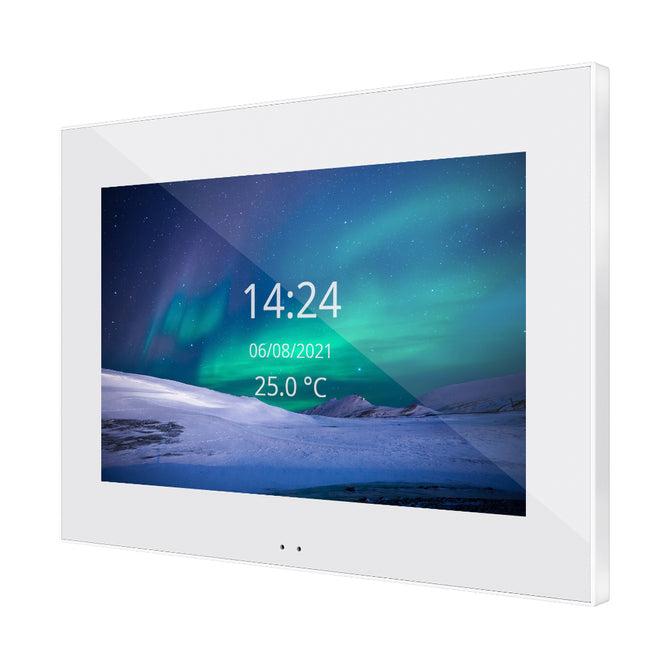

Color capacitive touch panel (7″ display)


Color capacitive touch panel with 7″ display for total control in smart homes and hotel rooms in a minimalist aesthetic environment. The built-in proximity sensor makes the screensaver appear when the touch panel is not being used and the luminosity sensor adjusts the brightness automatically. Z70 v2 incorporates an internal temperature probe, 2 thermostats and 4 analog-digital inputs. It includes USB and Ethernet port for program update.
Installation in European/British standard double back box.

Advanced features can be activated with the following licenses:

  • Smartphone Control License – Remote control from smartphones and tablets through a mobile app:
    • Ref. 8500006 – Virtual License
    • Ref. ZLIC70RCBX – Box License
  • Video Intercom License – Integration with the video intercom systems:
    • Ref. 8500007 – Virtual License
    • Ref. ZLIC70VPBX – Box License
  • ZenVoice License – Voice Control License. Remote Control License is needed (Ref. ZLIC70RCBX/8500006) :
    • Ref. 8500008 – Virtual License
    • Ref. ZLICZVBX – Box License

Licenses Generation tool: Zennio License Manager.

Accessories: temperature probe and motion sensor.


Only for ETS5/ETS6
To update Z70 v2, it is necessary to download the ETS application program and also update the firmware with the corresponding version.


Technical Documentation Date Version Downloads
Datasheet 7 pdf
Manual [3.7]_a pdf
Icon List [3.7]_a pdf
Manual for Firmware Update b pdf
Manual Zennio Remote 1.4_a pdf
Manual for Video Intercom Setting f pdf
Specific Manuals:
 – Brightness Manual [2.0]_a pdf
 – Manual Proximity and Luminosity [5.0]_a pdf
 – Manual Thermostat Zennio [3.0]_a pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Manual Binary Inputs [2.0]_a pdf
 – Motion Detector Manual [3.0]_a pdf
WebServer Tools Manual e pdf
Z50 / Z70 V2 / Z100’s License Import Instructions pdf
ZenVoice Manual 1.22 pdf
ZenVoice User Guide pdf
ZenCom Manual [2.0]_a pdf
Video Intercom Configuration Guide with Predefined Profiles and Indoor Units a pdf


Available Variants of this series:
Color capacitive touch panel (7" display) - ZVIZ70V2GW, Zennio
Colour: Gloss White

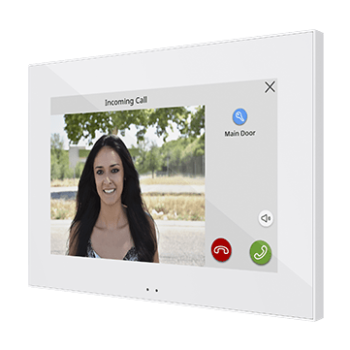

Color capacitive touch panel (7" display) - ZVIZ70V2W, Zennio
Colour: White

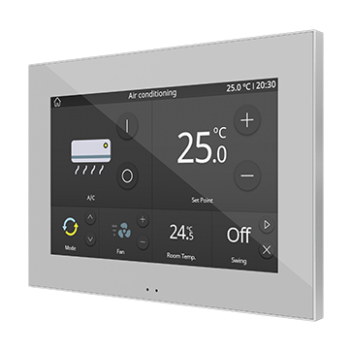

Color capacitive touch panel (7" display) - ZVIZ70V2S, Zennio
Colour: Silver
